X-celerator® Continuous Rod Injector

The X-CELERATOR® Continuous Rod Injector is the most popular and efficient injector head in the world for rod lift installations, with over 220 units in operation worldwide. It is known for being lightweight and easy to transport, while capable of reaching installation speeds of up to 120 feet per minute. Automated Rig Technologies purchased the product line in 2015 and has since made multiple upgrades, including new gripper chains and an increased pulling capacity of 33%. ART is dedicated to advancing industry through innovation and offers custom solutions for specialty applications. Their experienced staff provides 24/7 installation, commissioning, and support services. Contact them today for second to none service.

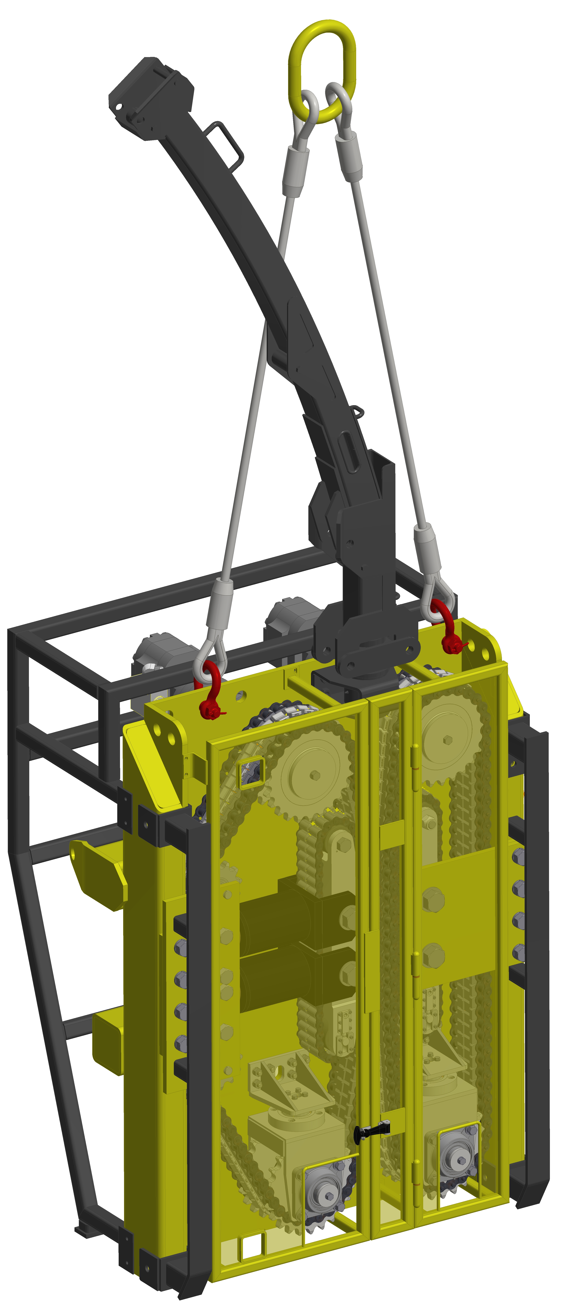

A mechanical robot arm with a black body and yellow hooks at the top, connected to a yellow and black casing with transparent panels revealing gears and mechanical components inside.

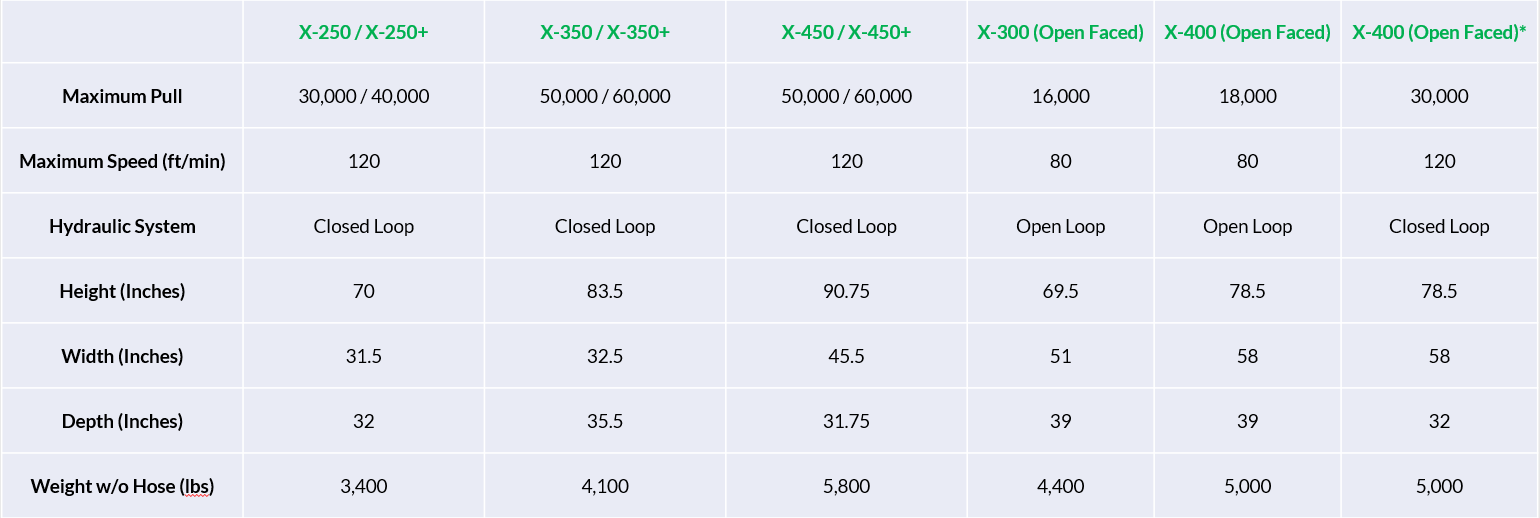

Comparison chart of different hydraulic models listing maximum pull, maximum speed, hydraulic system type, height, width, depth, and weight without hose.

Technical Specifications of Current X-celerator® Models

*Available with open loop drive train upon request

X-250/X-250+

Front view of industrial hydraulic machinery with multiple hoses, valves, and pumps inside a warehouse.

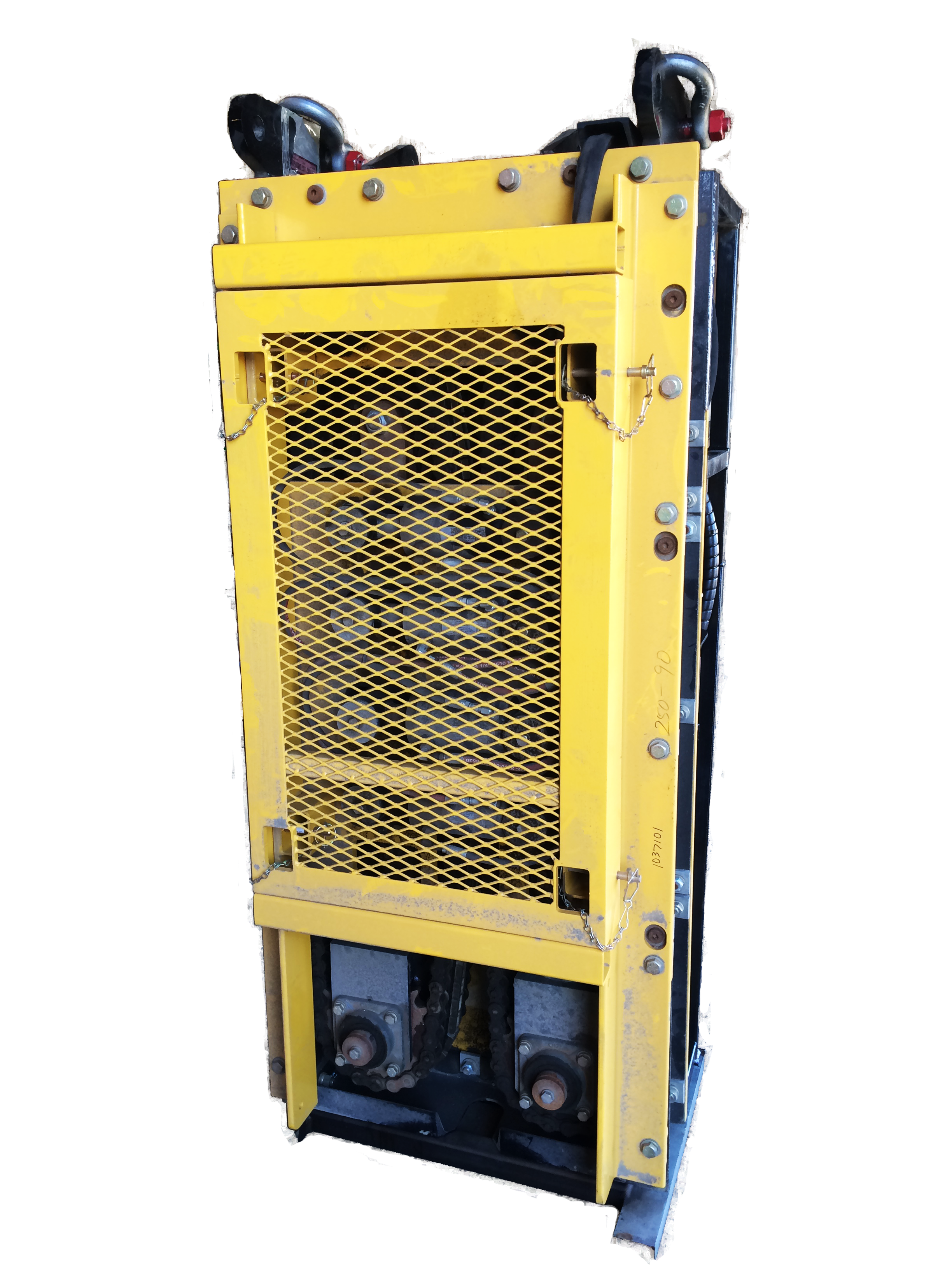

The image shows a piece of yellow industrial equipment with a metal mesh covering on the front, two rollers at the bottom, and various bolts and chains attaching parts of it.

X-350/X-350+

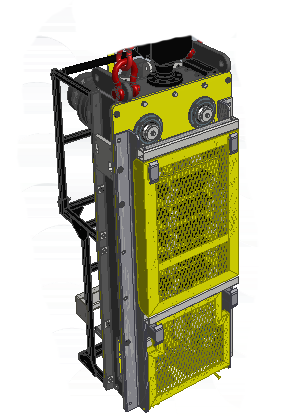

Vertical industrial cooling or ventilation unit with yellow mesh panels and red pipes at the top.

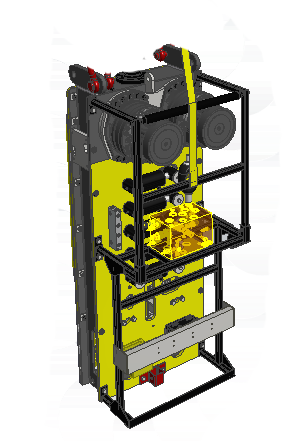

A close-up of a compact robot with a yellow and black frame, featuring two large speakers at the top, a yellow workspace, and various electronic and mechanical components.

X-300

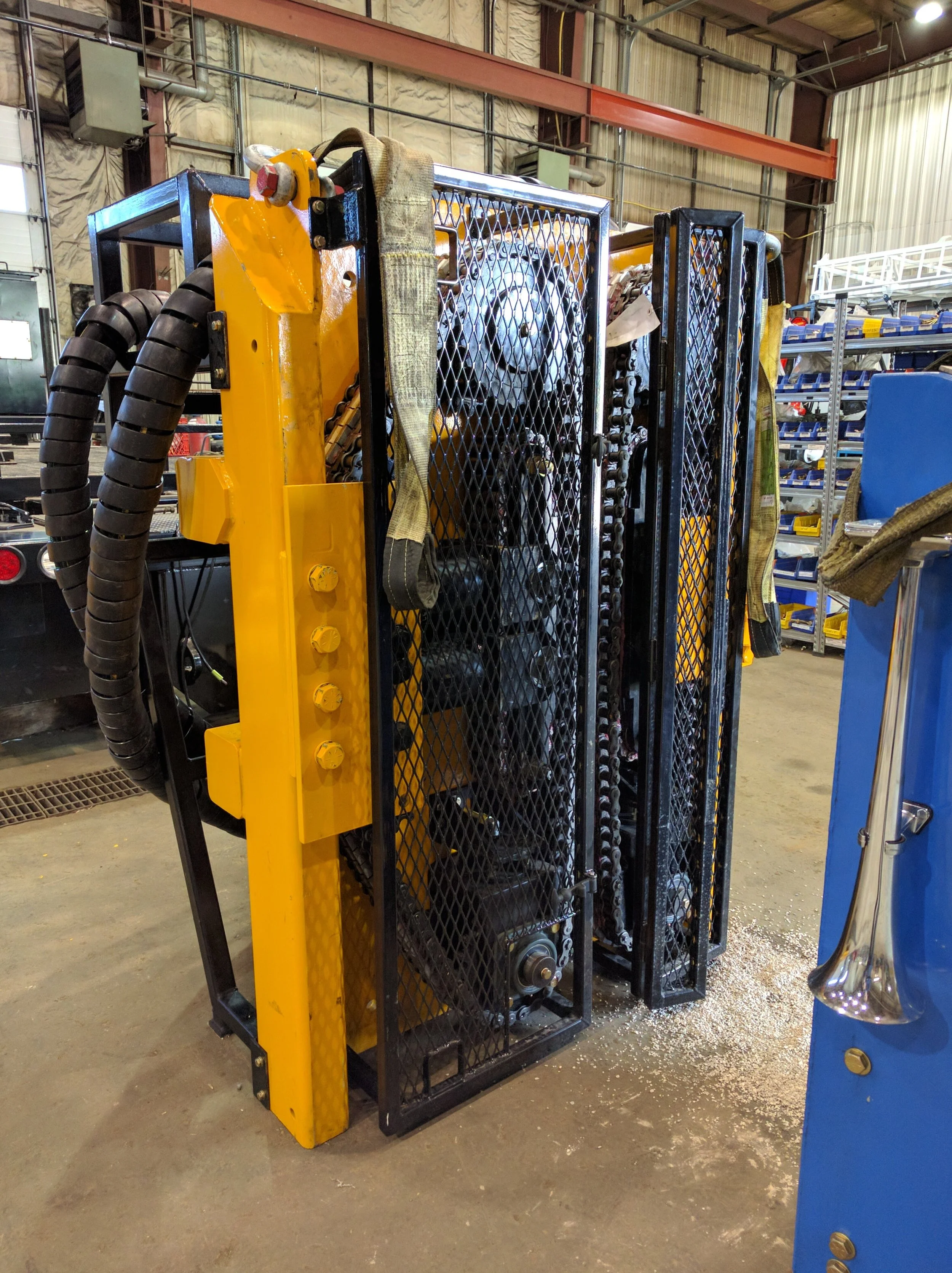

A large industrial machine with yellow and black metal parts, chains, and hoses, inside a workshop or factory with metal shelves and tools in the background.

X-400

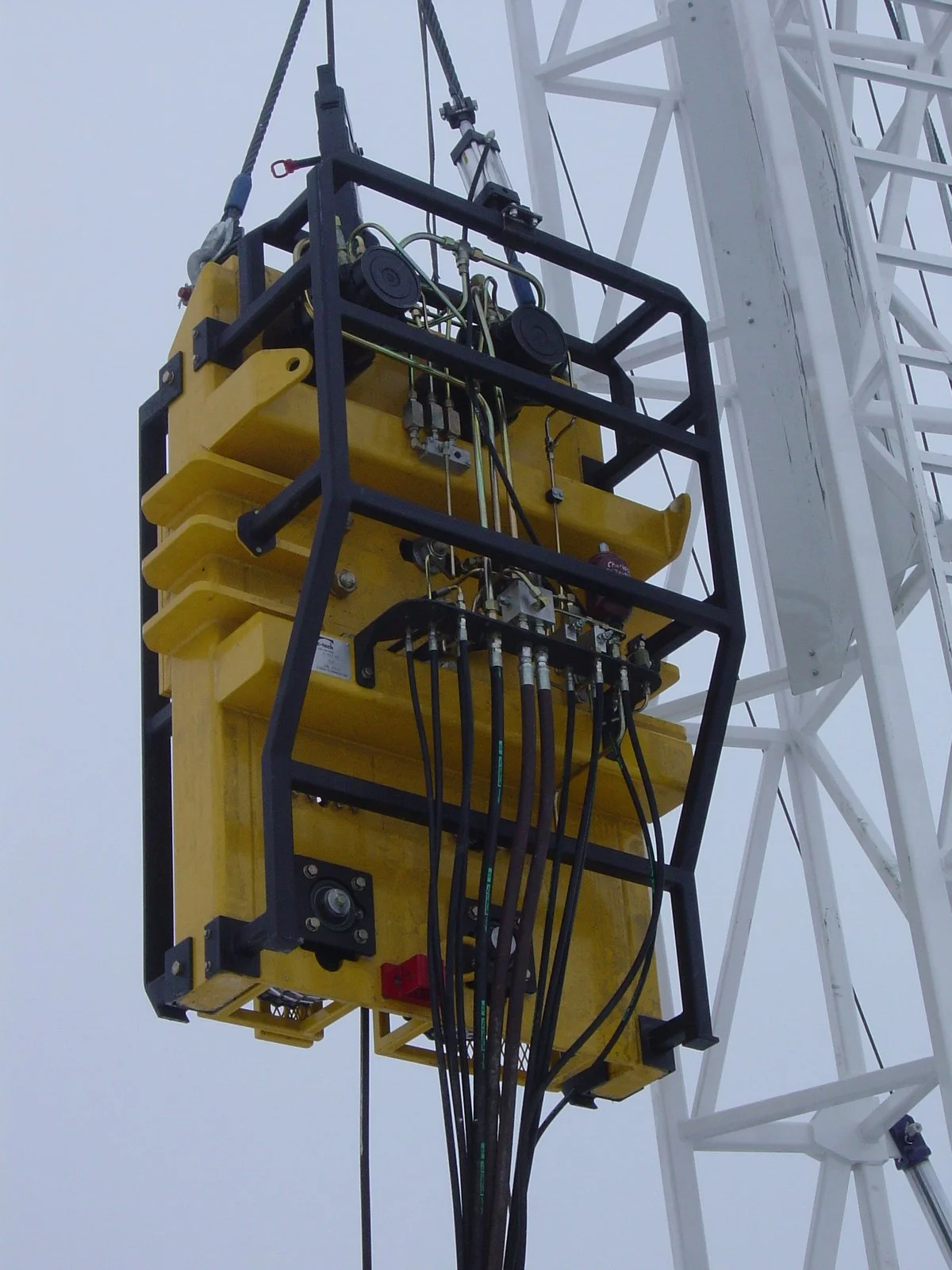

Close-up of a yellow industrial machine or sensor equipment hanging from a crane, with cables and a hook, against a cloudy sky.

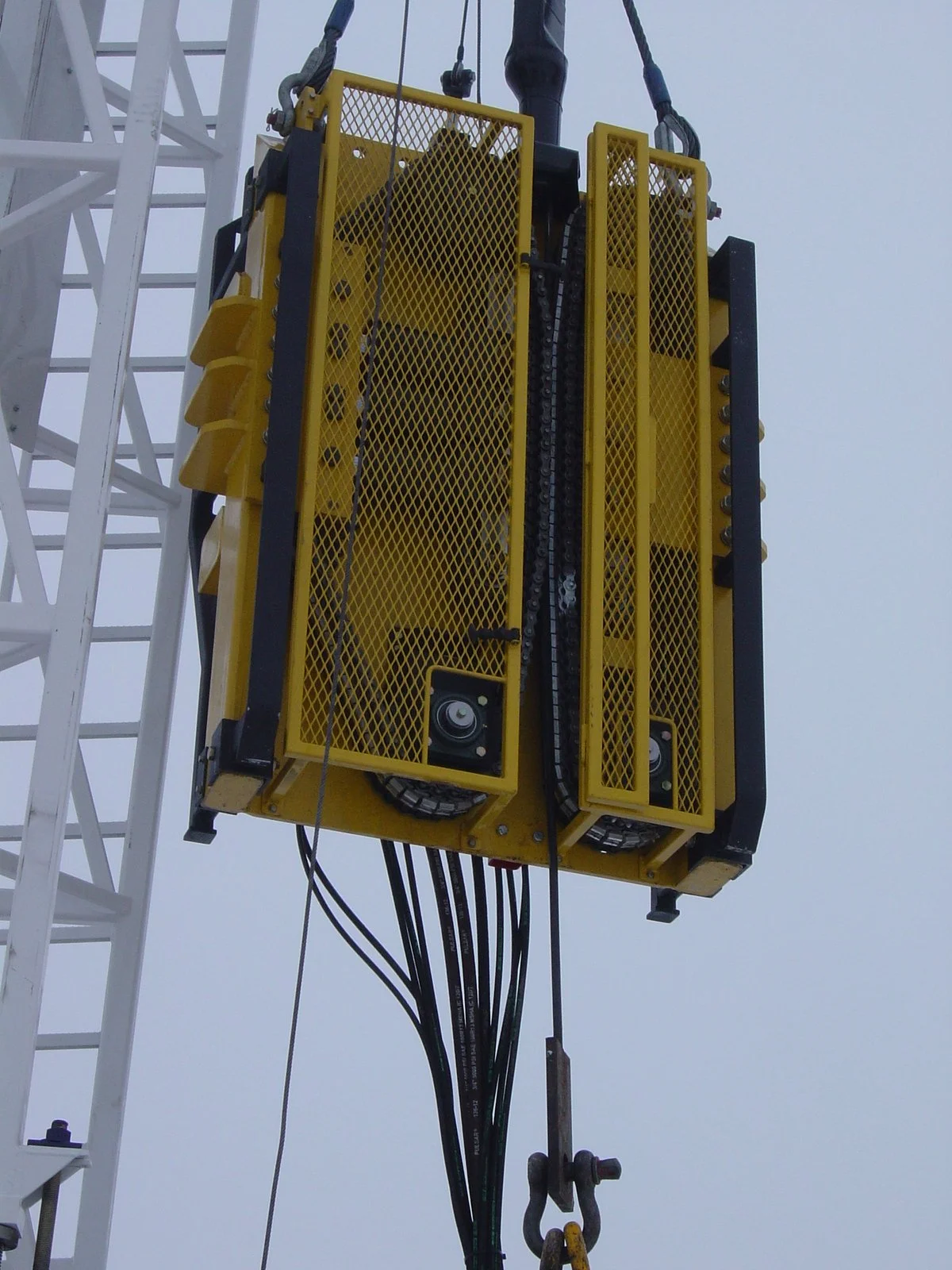

Close-up of a yellow drilling or construction equipment hanging from a crane with a white lattice tower in the background.
